Detail Information:
| Place of Origin: | China | Certification: | CE、ROHS、ISO9001 |
| Product Name: | E1-IH803L | Backing Thickness: | 0.025mm |
| Total Tape Thickness: | 0.045±0.005mm | Elongation At Break: | ≥45% |
| Maximum Operating Temperature: | 290℃ | Packaging Details: | Poly Bag+ Carton |
| Supply Ability: | 10000 M2/Day | ||
| Highlight: | 0.025mm ESD Adhesive Tape | PCB Masking ESD Adhesive Tape | ESD Polyimide Tapes |
Product Description:

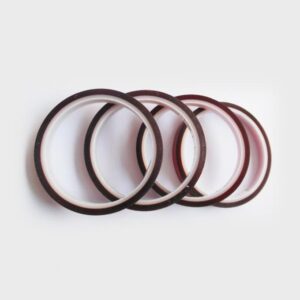

PCB Masking Soldering ESD Adhesive Tape 0.025mm High Temperature Polyimide Tapes
Anti-static polyimide tape E1-IH803L with high temperature resistance ideal for PCB masking during reflow and soldering
E1-IH803L is a polyimide film-backed silicone adhesive tape with super heat resistance and extremely low electrostatic discharge properties. And insulation resistance of adhesive side is measurable.
Features And Benefits:
1. Low electrostatic discharge at unwind and removal.
2. Resistant high temperature up to 290℃.
3. Excellent tensile strength & Elongation.
4. RoHS Compliant.
Application:
Masking for golden finger of Print circuit boards when wave soldering or reflow soldering process, surface protection under the high temperature without any residue.
Properties:
| Item | Typical Value |
| Backing | 0.025mm |
| Total Thickness | 0.045±0.005mm |
| Adhesion to Steel | 3N/25mm |
| Tensile Strength | ≥3.5(KN/M) |
| Elongation | ≥45% |
| Surface Resistance | 105-1010ohms |
| Static Discharge | <100V |
| Operating Temperature | 290℃ |
Construction:
Storage:
1. Store under normal conditions of 10-30℃ and 40-70% R.H, out of direct sunlight.
2. Shelf life: 12 months from the date of manufacture when stored in initial packing.
Precaution Reminder:
1. Surface should be clean, dry, free of dust, oil or other contaminants.
2. Proper pressure required by roller, hand or press when applying.
3. Avoid repeat sticking to prevent adhesion decrease.
Competitive advantages of our factory:
1. Very competitive price and high quality control.
2. Timely delivery.
3. Environmentally friendly products.
Notes:
Please be advised that this technical data sheet is written based on our lab tests and experience only. Customer is responsible to determine the suitability of the product meets intended application requirements before approved for use.
